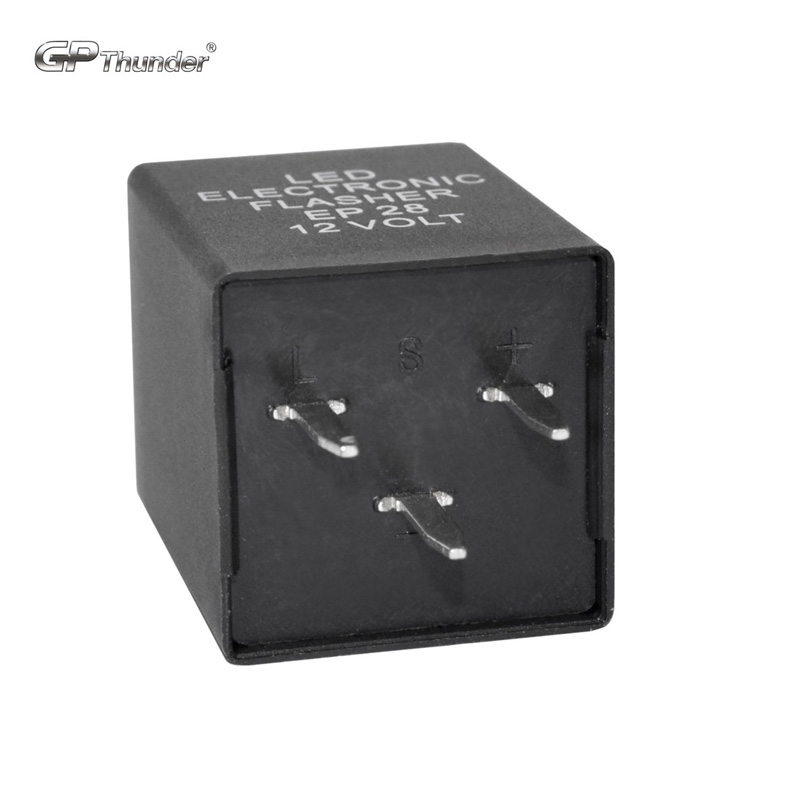

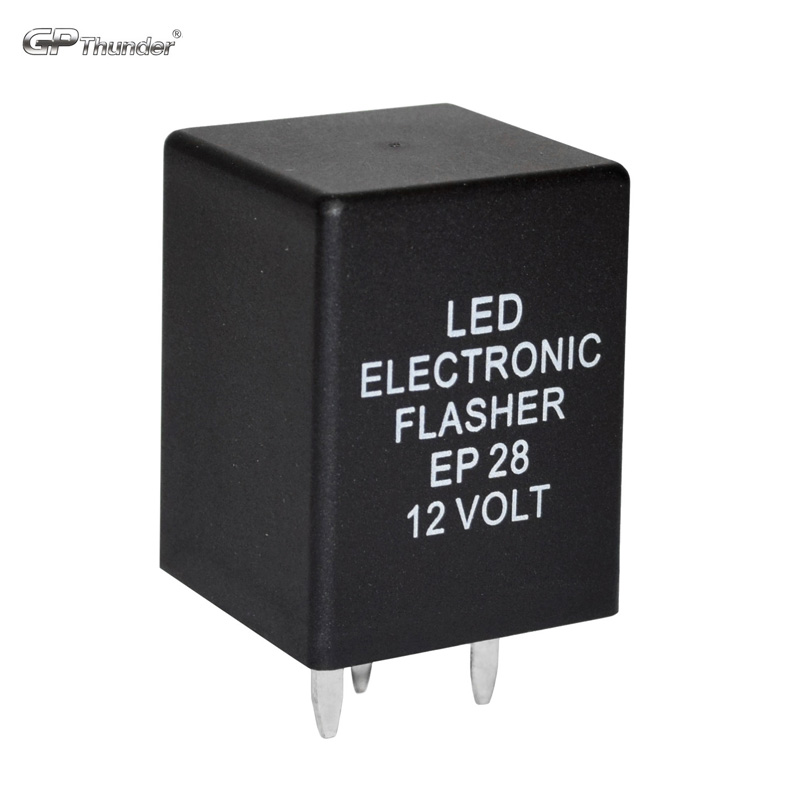

EP28 3-Pin Car Flasher Relay to Fix LED Light Hyper Blink Flash

Part#: EP28 (1pcs)

Cross Reference: EP28, FLL004

Overview:

EP28 features for a piece of 5-pin Electronic LED 12V Flasher Relay Fix for Turn Signal, Blinker Light. This will solve LED related turn signal problems such as rapid flashing, not flashing, or bulb burnt out warning on dashboard. These are designed for most 3-pin Japanese configurations. Simple Plug N' Play.

Important Information about the LED Flasher:

The LED flasher does not replace all flasher relay. Before ordering, please make sure the 5-pin configuration is the same as your vehicle's. You can usually find your flasher pin out printed right on your flasher. Failure to check this and installation in an incompatible vehicle can blow your fuse, destroy the flasher and void the flasher warranty.

Connection Instructions:

Replace the stock relay in the fuse box. Please check your owner manual to locate the flasher.

Technical Characteristics
Nominal Voltage	12V
Operating Voltage	11V...15V
Switch Current	0.02A - 20A
Max. Current	20A
Flashing Frequency	90 times per min
Operating Temperature	-40°C to +80°C
Life Time	200 working hours
Dimensions	1 3/16" (L)x 1 3/16" (W) x 1 9/16" (H) (excludes prongs connectors)

Package contents:

1ps EP28 LED Flasher

Warranty: 1 year
